PTG Methanol Injection System – The Ultimate Fueling Solution for W205 C63 AMG

The engineers at Premier Tuning Group (PTG) have developed the most comprehensive methanol injection system for the W205 C63 AMG, designed specifically for high-powered M177 builds. This bespoke system integrates seamlessly with the C63 platform, providing unmatched fueling capability, reliability, and performance.

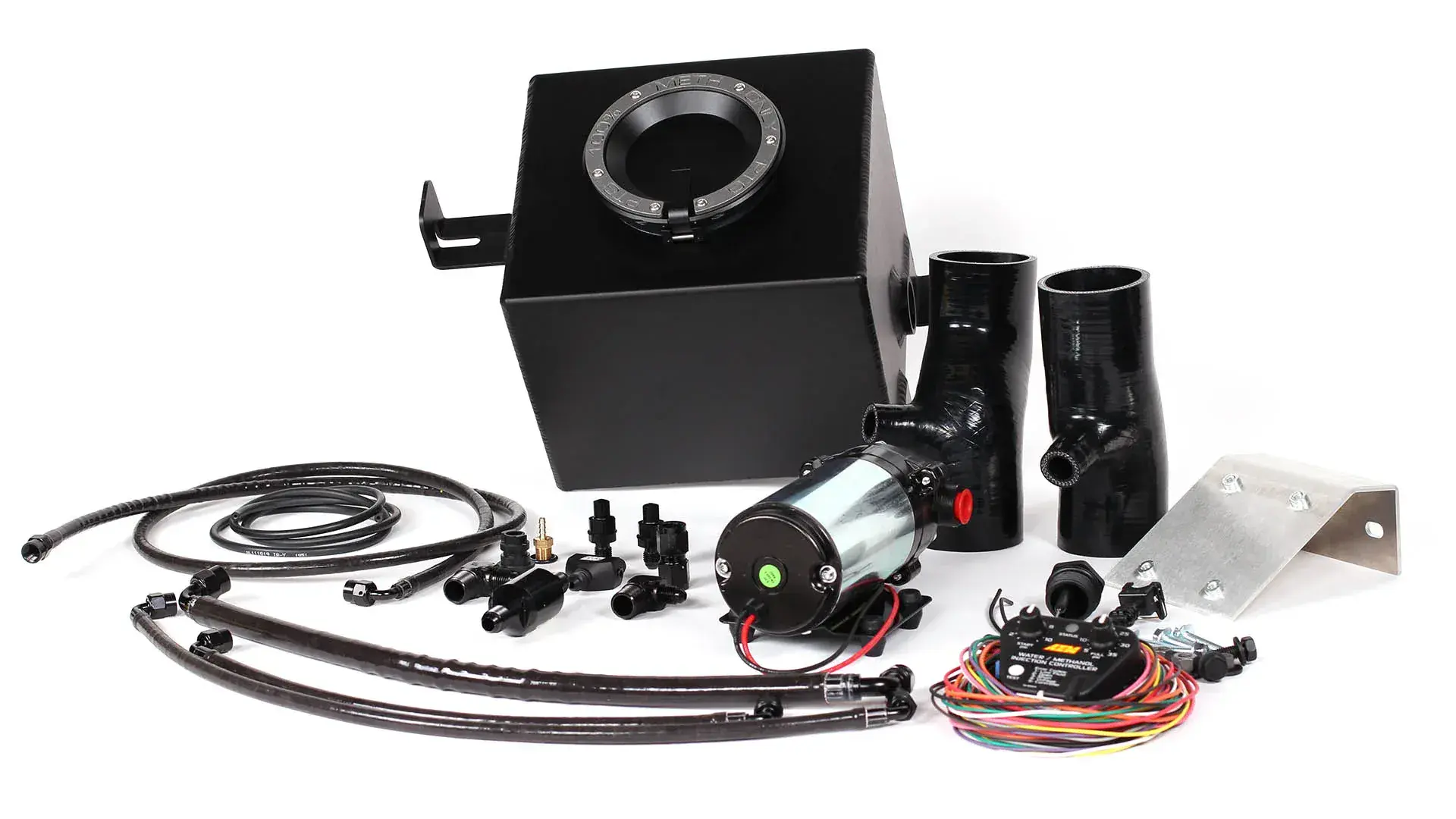

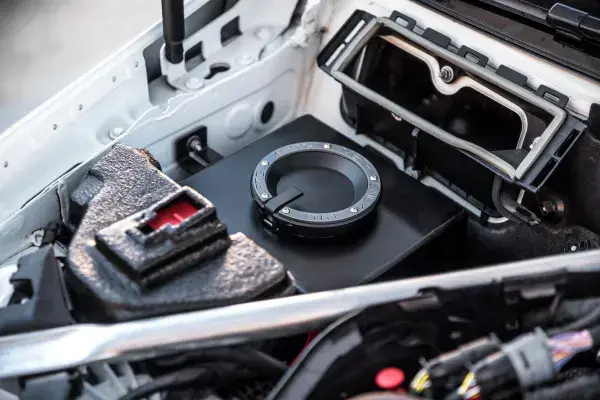

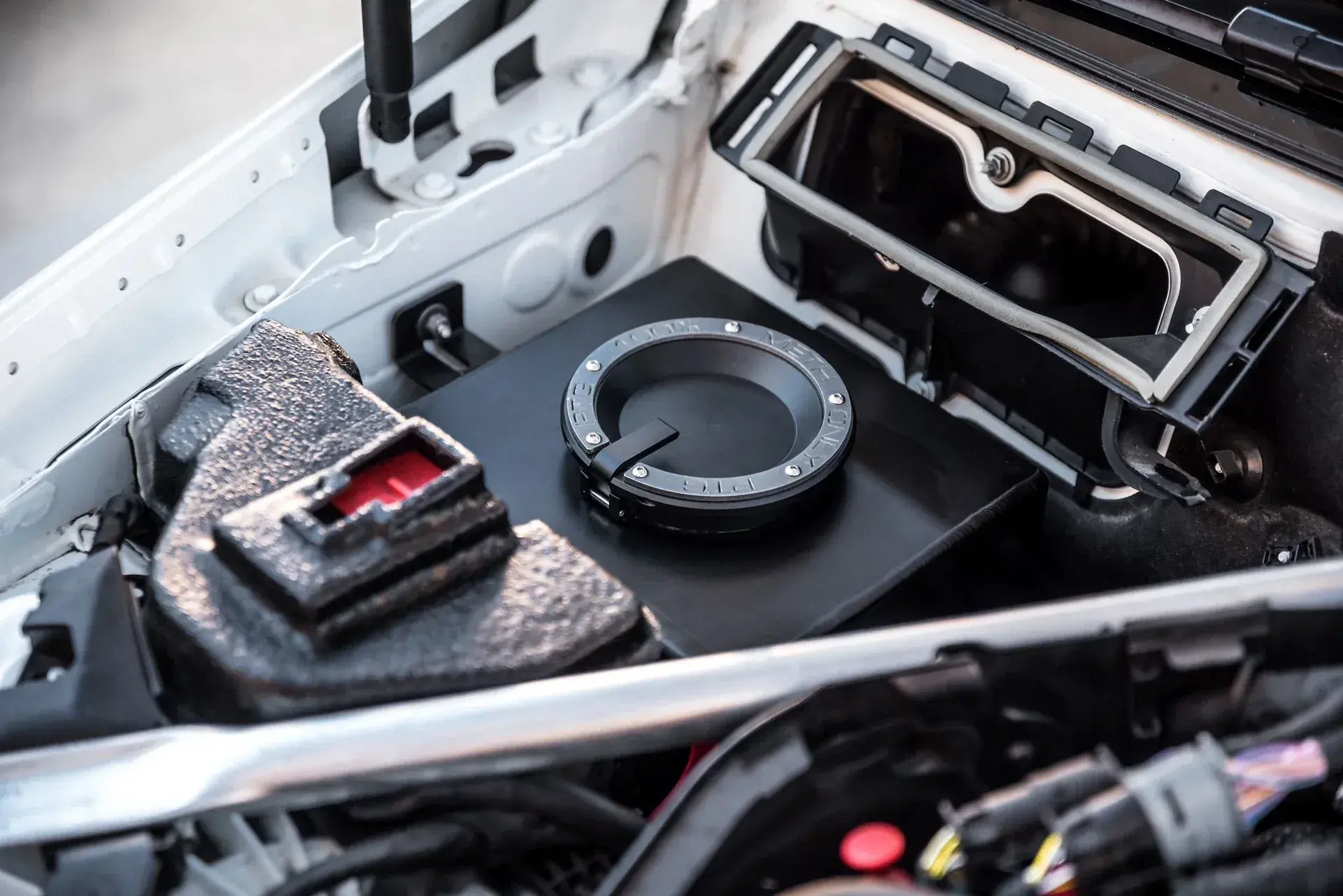

At the heart of the system is a hard-anodized 2.25-gallon aluminum methanol tank, designed to fit perfectly in an under-hood compartment—eliminating the need for a trunk-mounted tank while remaining NHRA-approved. The large 4-inch tilt cap ensures easy, mess-free refills even in high-performance applications.

The system is built with motorsport-grade Brown & Miller fluid transfer lines, allowing 100% methanol use with complete confidence. A high-flow 50-gallon-per-hour pump, the largest available, ensures consistent and reliable delivery. The gravity-fed design places the pump in the wheel well, protecting it from excess heat and ensuring filtered fluid reaches the engine efficiently.

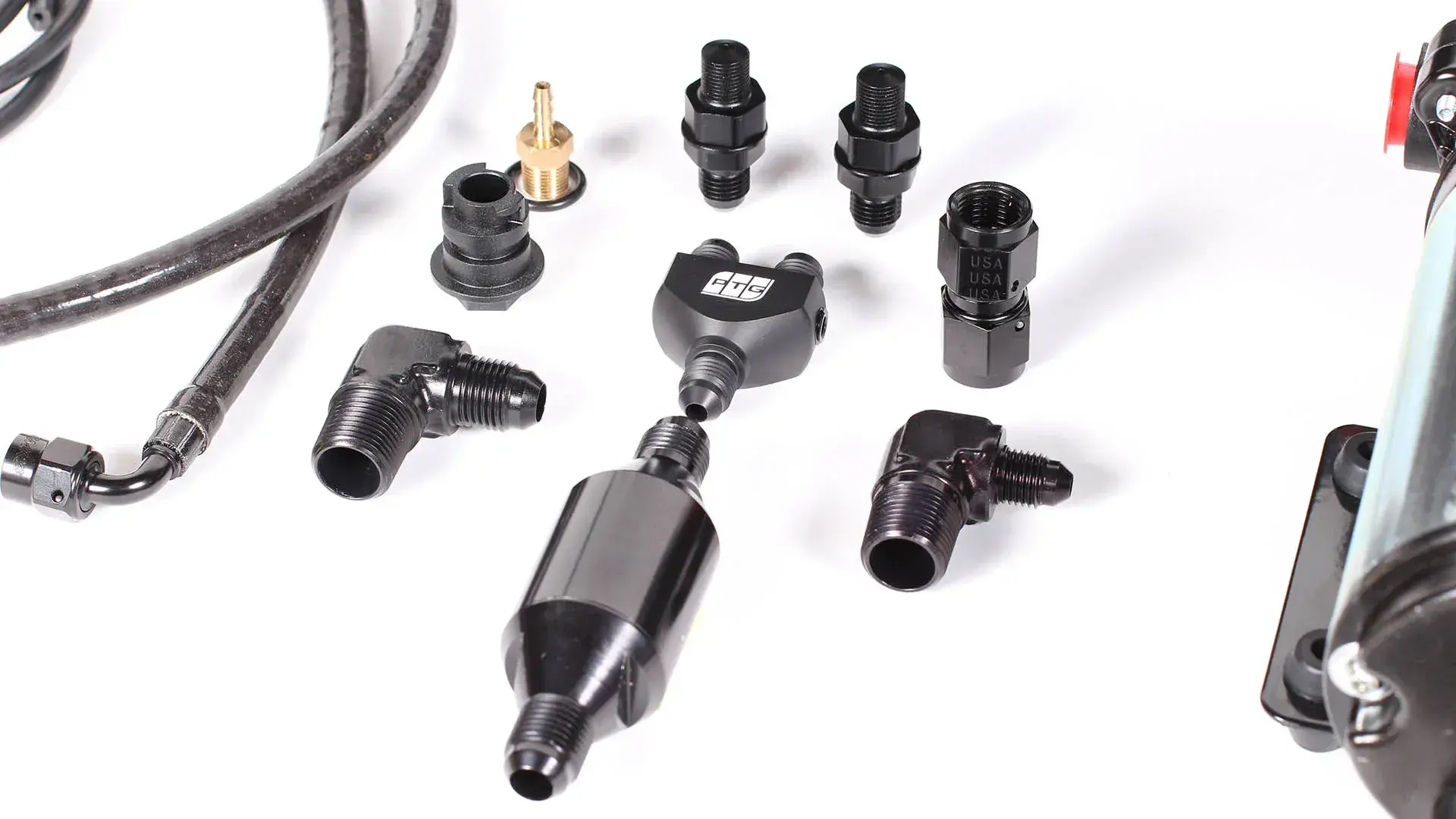

Aerospace-grade hard-anodized fittings and a PTG high-flow Y-fitting maximize flow efficiency, while included 4-ply silicone couplers allow for direct integration with stock turbos or seamless screw-in installation with PTG turbos. Nozzle selection is customizable, with options ranging from 500-800cc to 1,000-1,300cc, depending on horsepower targets.

This is the most complete and advanced methanol system available for the W205 C63 AMG.

Key Features & Benefits

✅ 2.25-Gallon Hard-Anodized Methanol Tank – Bolt-in design for seamless engine bay integration

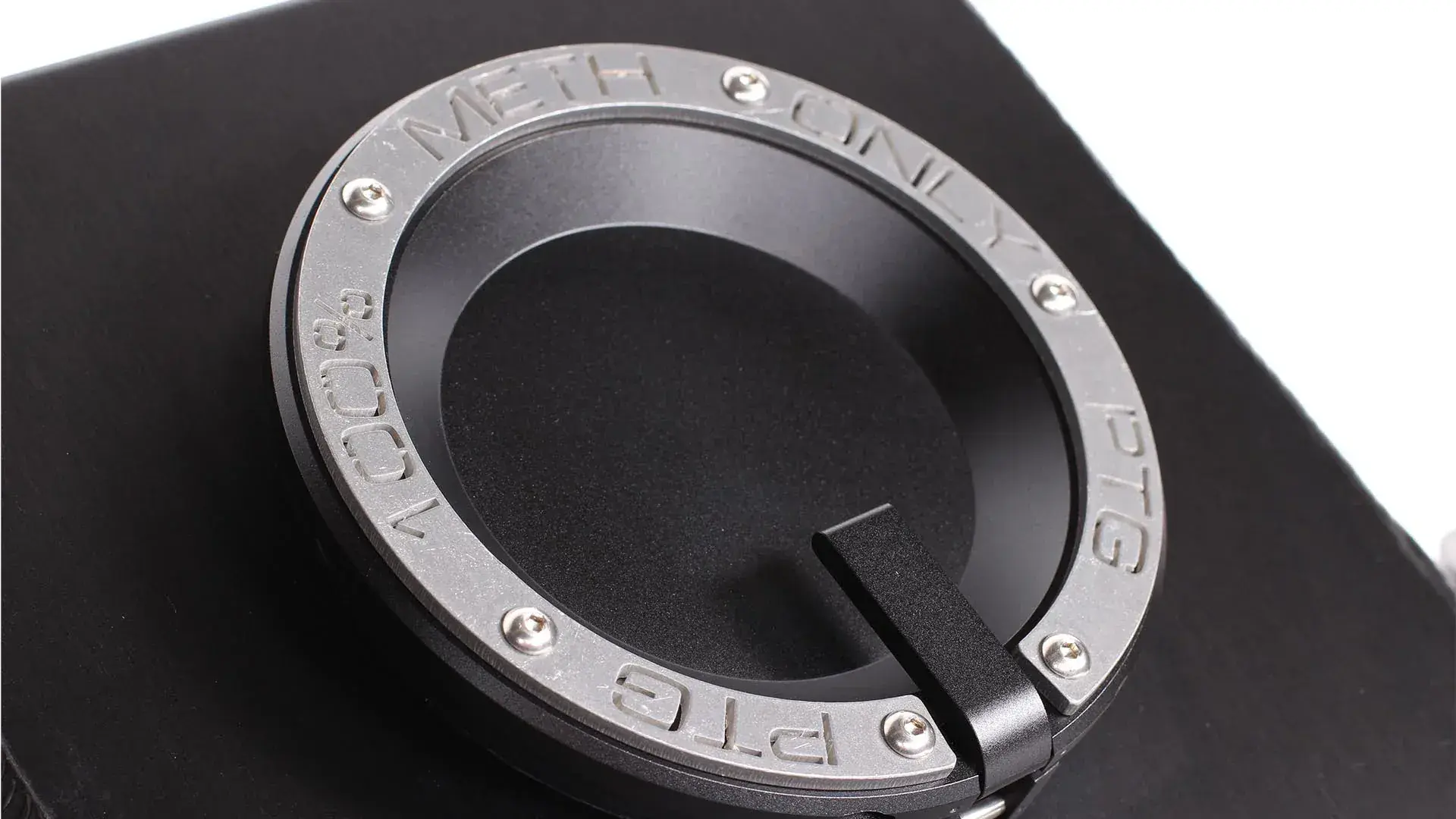

✅ Billet 4-Inch Tilt Cap – Easy, no-mess refills for high-performance applications
✅ Highest Flow Methanol-Safe Pump (50 GPH) – The most powerful pump available
✅ Brown & Miller Methanol-Safe Fluid Lines – Designed for 100% methanol use
✅ -6AN Feed with 10-Micron Filter – Ensures clean, uninterrupted flow
✅ PTG High-Flow Y-Fitting & -4AN Feed Lines – Maximizes flow efficiency
✅ 4-Ply Silicone Couplers for Stock Turbo Nozzle Placement – Simple direct fit
✅ Customizable Nozzle Options – Choose between 500-800cc or 1,000-1,300cc, depending on power goals

Vehicle Fitment – Mercedes-AMG W205 C63 M177 4.0L V8 BiTurbo

✔ 2015-2021 Mercedes-AMG C63 (Sedan, Coupe, Cabriolet)

Why Choose the PTG Methanol Injection System?

✅ Eliminates the Need for a Trunk-Mounted Tank – Sleek under-hood integration
✅ Delivers Consistent Methanol Flow for Maximum Power – Built for high-boost applications
✅ NHRA-Approved Design – Meets safety and performance standards
✅ Designed for Track, Drag, and High-Performance Street Use
✅ No Cutting or Major Modifications Required – Bolt-on installation

The PTG Methanol Injection System is the ultimate fueling upgrade for high-horsepower C63 builds, providing reliable, efficient, and race-ready methanol delivery.

Upgrade your fueling system today and push your AMG to the next level.
