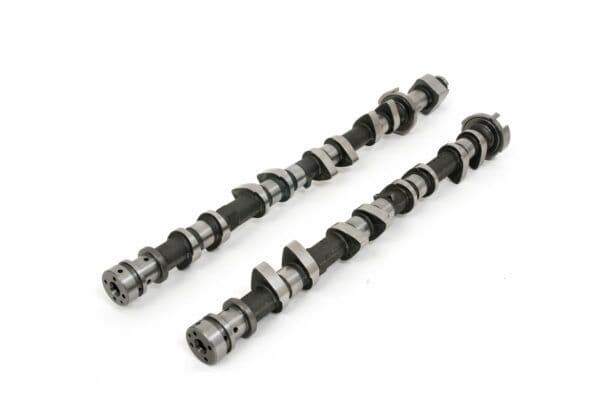

Engine and Gearbox
Profile: BP270.
Application: Fast Road.
Unit Type: Blank.
Note: Not suitable for use with standard O.E. springs. Piper VSSFECO23K Spring kit must be used.
| pplication |
Fast Road |
|---|---|
| Power Band |
2000-7000 |
| Power Increase |
– |
| Duration Inlet |
256° |
| Duration Exhaust |
244° |
| Valve Inlet Lift |
.378" 9.60mm |
| Valve Exhaust Lift |
.336" 8.53mm |
| Timing Inlet |
-1 – 77 |
| Timing Exhaust |
46 – 18 |
| Full Inlet Lift |
129° |
| Full Exhaust Lift |
104° |
| TDC Inlet Lift |
.004" 0.10mm |
| TDC Exhaust Lift |
.035" 0.89mm |
| Valve Inlet Clearance |
.010" .25mm |
| Valve Exhaust Clearance |
.014" .356mm |
| Manufacturer |
Ford |
| Product Type |
Camshaft |
